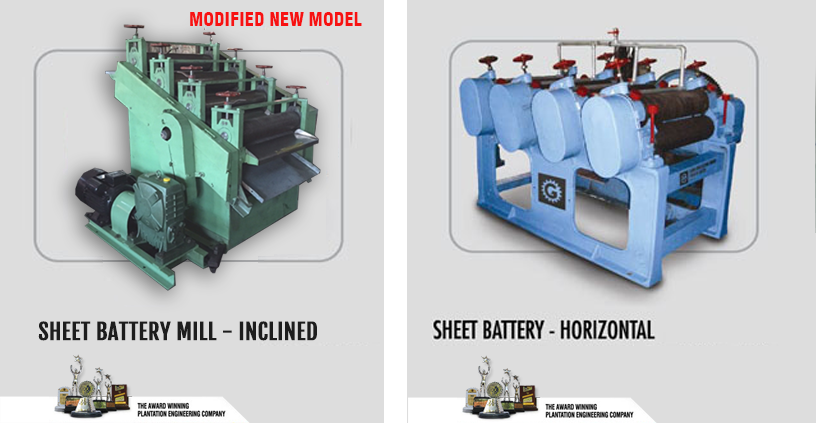

Robustly fabricated steel structure with height adjustable inclined Battery Roller arrangementfitted with water spry arrangement, driven via chain & sprocket arrangements designed to bepowered by a single or three phase motor coupled to an external gear box. The unit isdesigned to be semi-portable but need to be anchored to the ground when in operation.
| Main Frame | : | Steel |
| Rollers | : | 04 Sets (08Nos.), Ø5'6” Cast Iron Rollers with Steel Shafting, |
| • 1st. pair – Horizontally Grooved | ||
| • 2nd.& 3rd. pair – Smooth | ||
| • 4th. pair – Spirally Grooved | ||
| Roller Bearing | : | Sealed Ball Bearing housed in Cast Iron |
| Roller Gap Adjustment | : | Heavy duty screw type with lock. |
| Washing | : | Overhead water sprinkling system for cleaning. |
| Drive | : | Gear Box with Sprocket & Chain combination drive |
| Motor | : | 03Hp, 6pole, Single or Three Phase, 50Hz. |
Height adjustable HORIZONTAL Sheet Battery Roller arrangement fitted with water spry system, squarely bolted to a sturdy casted heavy duty Cast Iron Frame. The Sheet Battery is designed to be driven via chain & sprocket wheel arrangements and powered by a three phase motor via pulley drive arrangement. The unit is designed to be anchored to the ground.
| Main Frame | : | Cast Iron |
| Rollers | : | 04 Sets (08Nos.) or 05 Sets (10Nos.), |
| Ø6” Cast Iron Rollers with Steel Shafting | ||
| • 1st. pair – Horizontally Grooved | ||
| • 2nd.& 3rd. pair – Smooth | ||
| • 4th. pair – Spirally Grooved | ||
| Roller Bearing | : | Bronze Bush Bearing housed in Cast Iron |
| Roller Gap Adjustment | : | Heavy duty screw type with lock. |
| Washing | : | Overhead water sprinkling system for cleaning. |
| Drive | : | Open Spur Gear & Pulley Drive |
| Motor | : | 05Hp, 6pole, Single or Three Phase, 415V, 50Hz. |
