Pug Mill

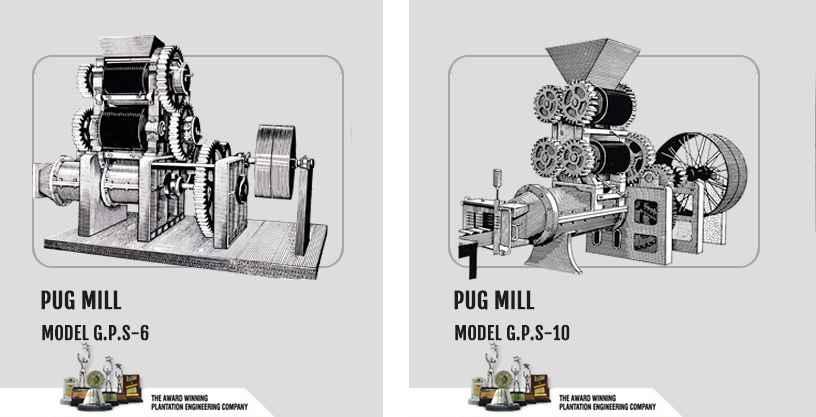

Designing : Gamini 3 Process Pugmil (John white head’s type) Model GPL 10 is well designed for grinding, mixing & pugging clay & suitable to the local conditions and clay available in the country.
Out put : 12000 to 16000 wirecut bricks or 100000 to 12000 tiles slabs per 8hr. working shift could be produced.
Technical Particulars : Contains 2sets of 16” dia. x20” long Cast iron rollers with barrel bore 3” provided with additional ball thrusts for the pug shafts and saftery clutch arrangements for rollers with 48” x 12” fast & loose pulleys and mountaing bed. Pulleys speed 100 r.p.m. Approx weight of the machine is 6 ¾ tons.
Power required : Could be operated on 50h.p. electric motor or Engine.
Spare parts : We have in stock spare parts required for this pugmill and thereby reducing the idlying period of production.
Guarantee : Six months against manufacturer defects.
Installation : Free advice of installation will be offered. We undertake installation also with our usual installation charges.
Finishing : Elegantly finished.
Motor : 03Hp, 6pole, Single Phase, 230V, 50Hz.
Meintanence : The technology involved is very simple. Hence, the maintenance is easy and economical.
Acceptance of Orders : Order with 50% advance will be accepted. Machine could be produced within 6-8 weeks and delivery will be undertaken to any part of the country with transport charges.
Designing : Gamini 3 Process Pugmil (John white head’s type) Model GPL 6 is well designed for grinding, mixing & pugging clay & suitable to the local conditions and clay available in the country.
Out put : 8000 to 10000 wirecut bricks or 6000tile slabs per 8hr. working shift could be produced.
Technical Particulars : Contains 2 sets of 12” dia. x15” long cast iron rollers & 12” barrel bore with 3” dia. Pug shaft with rare roller thrust bearing.
Power required : Could be operated on 30 to 35 h.p. Electric motor or Engine.
Spare parts : We have in stock spare parts required for this Pugmill and thereby reducing the idlying period of production.
Guarantee : Six months against manufacturer defects.
Installation : Free advice of installation will be offered. We undertake installation also with our usual installation charges.
Finishing : Elegantly finished.
Meintanence : The technology involved is very simple. Hence, the maintenance is easy and economical.
