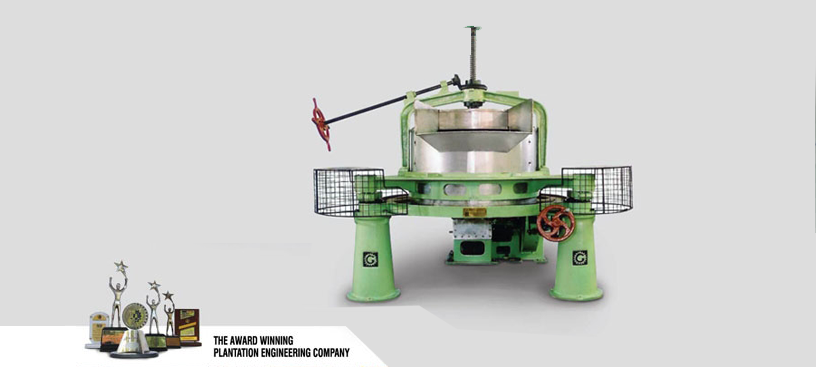

Heavy Duty Standard Tea Roller
Model : Heavy Duty Standard Tea Roller
Size : 47" & 45"
Withered Leaf Capacity : 325Kgs. & 300Kgs. per charge respectively
Battens : Crescent, M&S, Yews, Cone
Cone : Rettie, Fadeaway, Keegal
Door-Ring : Standardized & Machine Matched with Cone
Table : Class 01 Timber Base, Kituhvood Table Lining & Hardwood Surrounds /td>
Leaf Jacket : Stainless Steel, 304 Grade with Feed Hopper
Gear Dive : Machine-Cut. Case Harden, Hypoid Bevel Crown Wheel & Pinion
Bearings : SKF Ball & Roller Bearings
Inching Wheel : Aluminum Castel. Machine Finished
Power : 20HP, 06 Pole, 960 rpm, Teco Motor with Suitably Rated Star Delta Starter
Foundation : Grounded with M.S. Foundation Bolted on Concrete Foundation
Roller Height : Aprox. 9’
Weight : Aprox. 2250Kgs
Installation Area : 12’ x 12’
Automation : Electro-Mechanical Pressure Application System
Electro-Mechanical Door Operating & Locking System Modification
Extended Feed Hooper
Installation above Ground Level
Rotation of Door Operating Mechanism 90° to the Normal
