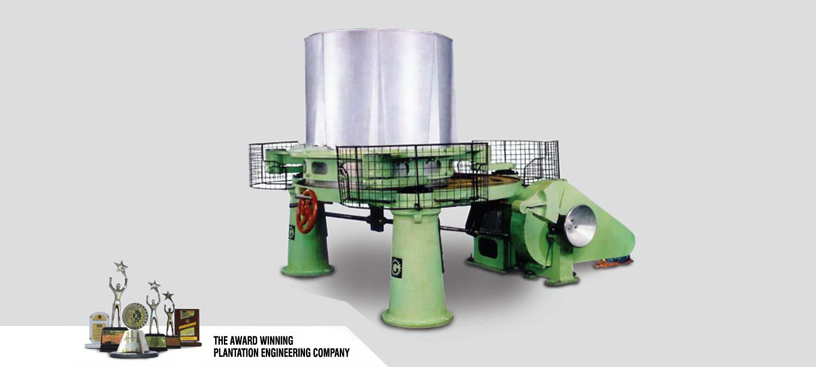

Heavy Duty Charge Tea Roller
Model : Heavy Duty Charge Tea Roller
Size : 47”
Withered Leaf Capacity : 350Kgs. Per charge
Battens : Crescent, M& S, Yews
Cone : Rettie, Fadeaway, Keegal
Door-Ring : Standardized & Machine Matched with Cone
Table : Class 01 Timber Base, Kitulwood Table Lining & Hardwood Surrounds
Leaf Jacket : 4’ Extended Stainless Steel Jacket, 304 Grade, Re-enforced
Gear Dive : Machine-Cut, Case Harden, Hypoid Bevel Crown Wheel & Pinion
Bearings : SKF Ball & Roller Bearings
Inching Wheel : Aluminum Casted, Machine Finished
Power : 20HP, 06 Pole, 960 rpm, Teco Motor with Suitably Rated Star Delta Starter
Foundation : Grounded with M.S. Foundation Bolted on Concrete Foundation
Roller Height : Aprox. 9’
Weight : Aprox. 2000Kgs
Installation Area : 12’ x 12’
Automation : Electro – Mechanical Door Operating & Locking System
Modification : Installation above Ground Level Rotation of Door Operating Mechanism 90o to the Normal
Gear Dive : Machine-Cut, Case Harden, Hypoid Bevel Crown Wheel & Pinion
