Hand Mill

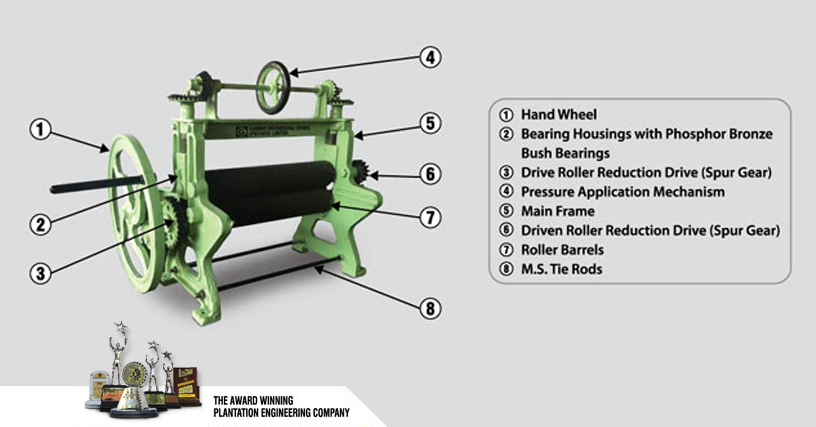

Height adjustable horizontal Hand Mill compromising of a heavy duty Gray Cast Iron (C.I.) Frame, with height adjustable/ slider C.I. Top Bearing Blocks and the stationary Bottom Bearings Blocks are fitted with Phosphor Bronze Bush Bearings enabling the smooth rotation of the 02Nos. C.I. Roller Barrels (Smooth/Spiral). The robustly build C.I. Bevel Gear Pressure Application Mechanism working in tandem, designed to give an uniform and steady pressure throughout the contact area of the roller surface and the sheet. The system is equipped with a mini C.I. Hand Wheel for easy operation. The Mill is powered via a large manually operated C.I. Hand wheel which acts as a Fly Wheel in motion. The Manually applied power is geared and multiplied via C.I. Spur Gear reduction drive onto the Drive Roller by a 1:1.1 C.I. Spur Gearing system. The Mill can be fitted with wooden boards on either side for convenient and collection.

Smooth Roller – Specifications :

Roller Width : 50-60cm
Roller Diameter : 9-11.5cm
Mill Components : Cast Iron
Bearings : Bush (Phosphr Bronze)
Gear Ratio : 1:1.1

Spiral Roller – Specifications :

Roller Width : 50-60cm
Roller Diameter : 9-11.5cm
Mill Components : Cast Iron
Bearings : Bush (Phosphr Bronze)
Gear Ratio : 1:1.1
Grooves : Width – 3mm
Depth -3mm
Shape – Square
Distance between grooves : 4.5mm
Slant : 45o
