Rubber Mill

Gamini Rubber Mills, casted out of close grained Cast Iron, machined to precision to ensure a flawless fit. Cast Iron (Standard) or Chilled Roll Barrels are designed for water cooling, are supported on wear & heat resistant. Phosphor Bronze Bearings. Roller RPM is govern by a pair of robust Spare Gears and the power is delivered to the machine via a Helical Wheel & V – Pulley system supported on SKF Plumber Block Bearings ; all gears are machine cut for perfect meshing and noise reduction.

Specifications:

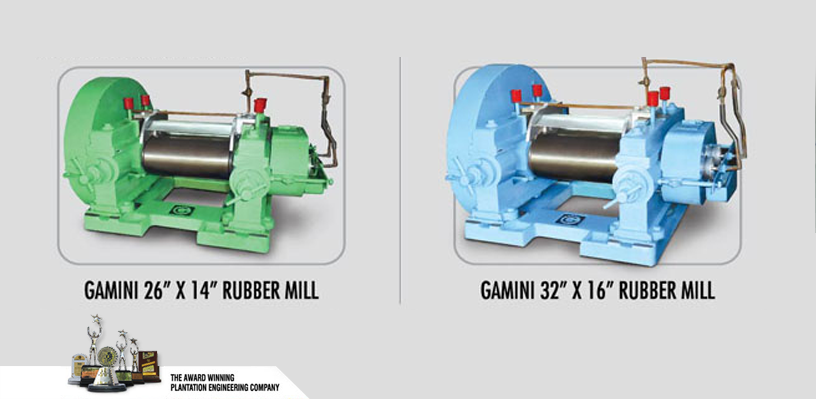

Models : 26” x 14”, 30” x 14” & 32” x 16”
Designed for : Macerating
Scrap creping
Dry blanketing
Compounding
Mill frames base plate Bearing Housings : in case grained cast iron Machined to close Limits
Roller Barrels : Designed for internal Water Culling (Hollow Cored ) in Gray / Chilled Cast Iron
Grooving : Liner Grooved Spirally Grooved Axial Spirally (Oblong Diamond) Grooved Axial Double Spirally Grooved Diamond Grooved Smooth
Inter Roll End Gears : In close Grained Cast iron & Steel Machine Cut to desired Gear Rations using DP Cutters to BSS DIN Standards
Drive Gears : Cast Iron Single Unit Double Helical Gears Max. Dia. 56 and Steel Double Helical Pinions
Roller Barrel Bearings : Wear & Heat Resistant phosphor Bronze
Pressure Mechanism : Steel Pressure Adjusting Screws Mounted on Cast iron Screw Bushes with cast iron Safety Pads
Operator Safety : Emergency stop Button / Safety Bar
Power : 26” x 14” – 20HP to 30 HP
30” x 14” – 30HP to 40 HP
32” x 16” – 30HP to 50 HP
Installation : By Skilled Technicians under Engineers’ Necessary Supervision
Spares : Readily Available
Warranty : One year
