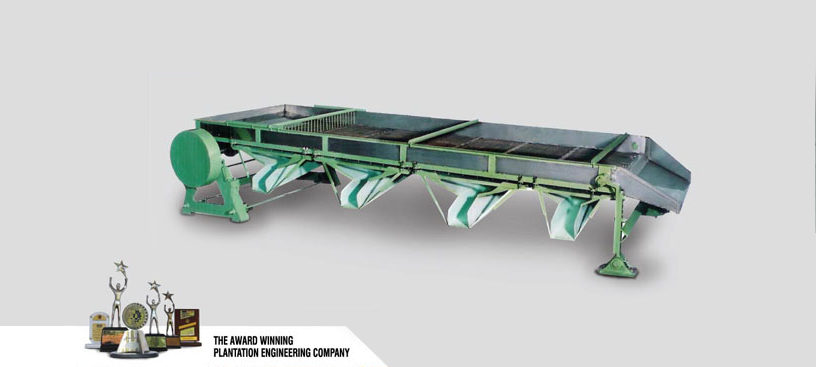

Roll Breaker
Main Frame & Crank : Gray Cast Iron Frame joined with Steel Angel Iron and re-forced with Steel Tie Rods to which the forget Steel, machine cut Crankshaft, mounted on Heavy Duty East European Ball Bearing.
Reciprocating Main Tray : Lined with Stainless Steel Sheets of 3.4 gage and the Stainless Steel Mesh of customer specified size is supported on 02” x 02” G.I. welded Mesh (standard Issue) or 06” x 06” x 3/16” S.S. Supporting welded Mesh (optional Extra Feature – instead of GI support Mesh) as per customer requirement.
Discharge Directing Trays : The under xarriage can be fitted with customized removable Fiber Glass or S.S. dhool Discharge Directing Trays, re-enforced with steel , that are lightweight, easy to clean, no damage to leaf and for hygienic operation.
Drive : The Machine is designed to be powered by a 02HP, 1415RPM, 04 Pole, Electric motor (TEFC TECO) with a “V” belt drive system to ensure quiet operation with lower power utilization and durability. The Crankshaft and the moving Frame are statically balanced in relation to the “Dead Weight” of the moving components to ensure long, trouble free, smooth running with maximum efficiency.
Size : Standard : 4’-0”
Custom : 4’-6”, 3’-6”, & 3’-0”
Tray Mesh & RPM : As per customer specification
Warranty : ONE YEAR
Spares : Readily Available.
